Canyon Grail CF Headset Bearing Kit (2016 Onwards) From Aire Velo (IS44/IS44, GP7172-01)

Price range: £19.50 through £90.00

Total Sold: 307

Canyon Grail CF Headset Bearing Kit (2016 Onwards) From Aire Velo (IS44/IS44, GP7172-01)

CANYON PART NUMBER: GP7172-01

WARNING: On the Canyon website they list the dimensions of the upper bearing as 44 x 31.6 x 5.5 ACROS 1-1/4. These dimensions include the compression ring and are not the dimensions of the bearing itself. This bearing kit is a direct replacement, and will match those measurements when combined with a compression ring.

INCLUDES: AL SLX, CF SL, CF SLX, CF EVO

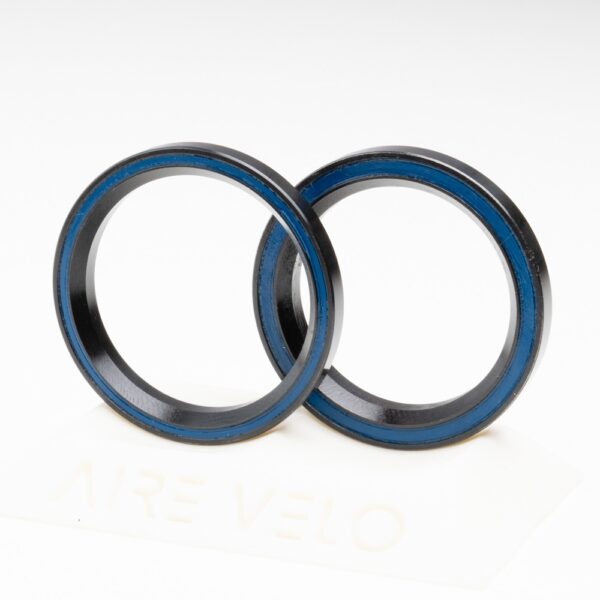

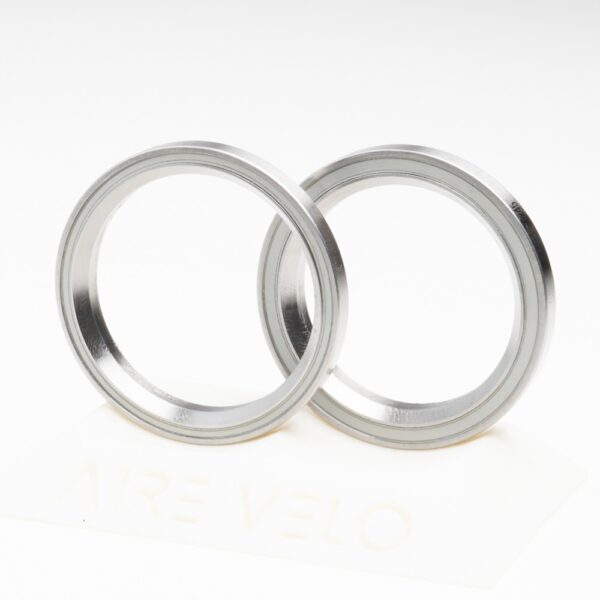

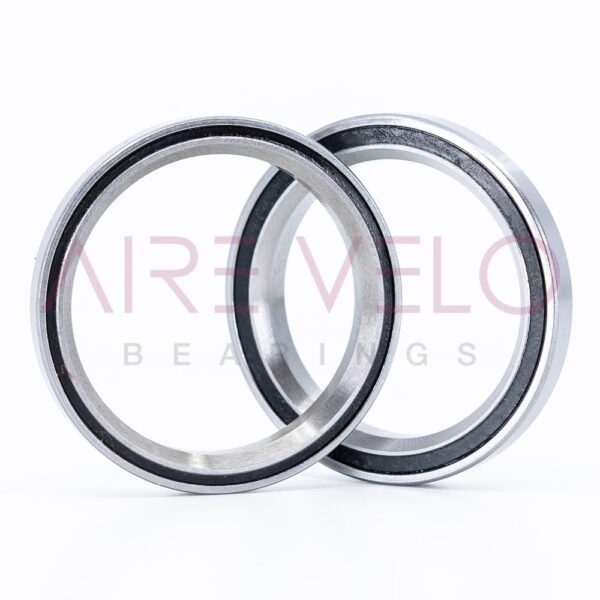

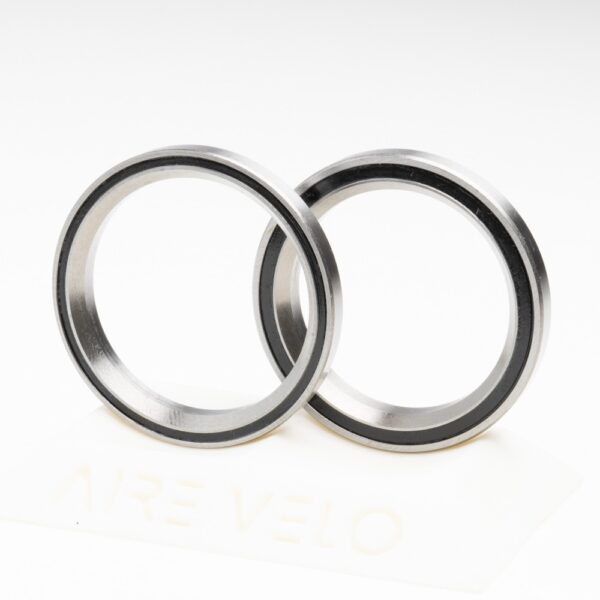

Upper Bearing – AC3544 (35 x 44 x 5.5 – 36/45)

Lower Bearing – AC3344 (33 x 44 x 6 – 36/45)



Click to see available material/brand options.

Canyon Grail CF Headset Bearing Kit (2016 Onwards) From Aire Velo (IS44/IS44, GP7172-01)

CANYON PART NUMBER: GP7172-01

WARNING: On the Canyon website they list the dimensions of the upper bearing as 44 x 31.6 x 5.5 ACROS 1-1/4. These dimensions include the compression ring and are not the dimensions of the bearing itself. This bearing kit is a direct replacement, and will match those measurements when combined with a compression ring.

INCLUDES: AL SLX, CF SL, CF SLX, CF EVO

Upper Bearing – AC3544 (35 x 44 x 5.5 – 36/45)

Lower Bearing – AC3344 (33 x 44 x 6 – 36/45)



Click to see available material/brand options.



Weight0.07 kg
Dimensions44 × 44 × 12 mm
country_of_origin

Taiwan

Dimensions

35x44x5.5 / 33x44x6

hs_code

848210

customs_description

Ball Bearings

ID

35 / 33

OD

44 / 44

Depth

5.5 / 6

Chamfer Angles

36/45

Internal Chamfer Angle

36

External Chamfer Angle

45

Kit Type

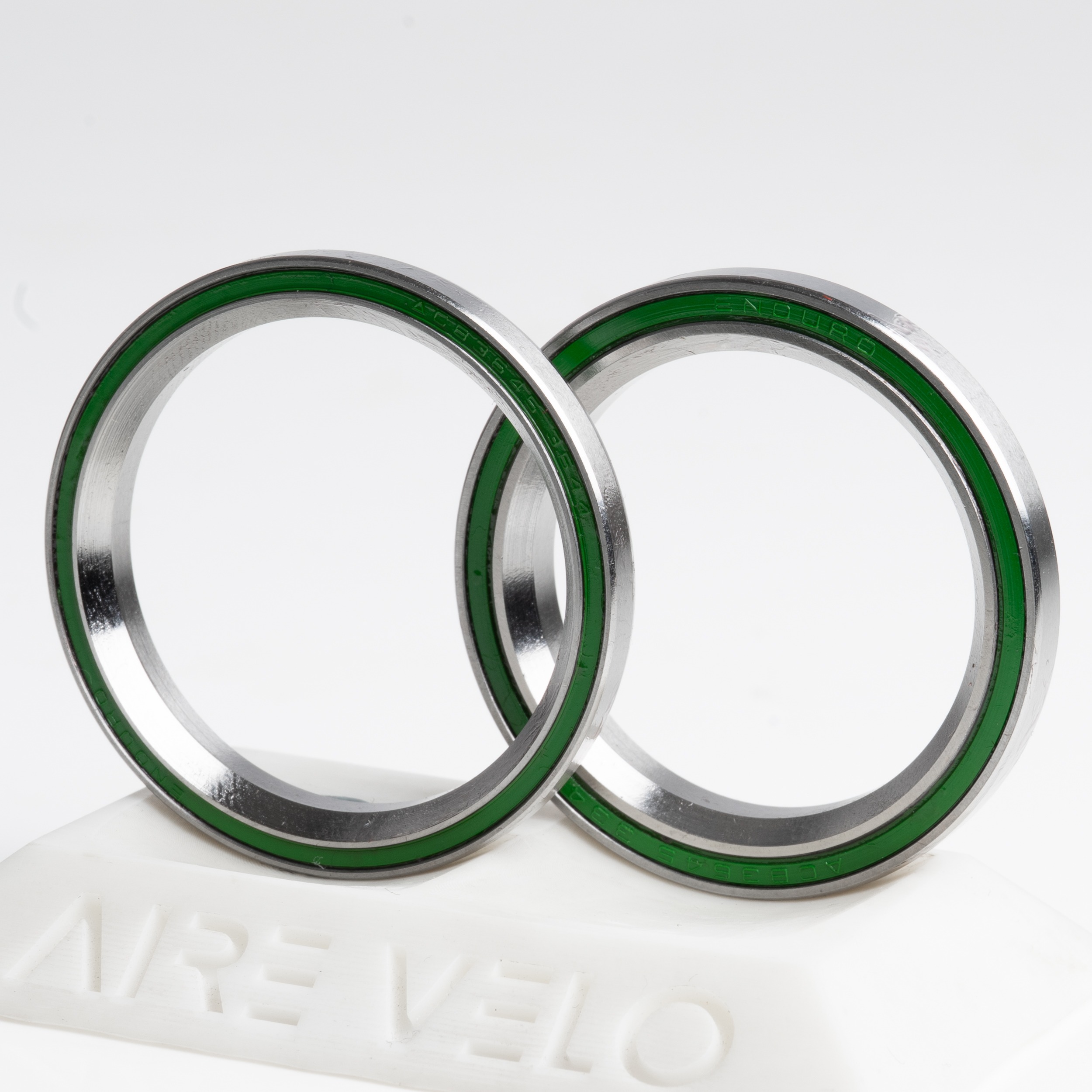

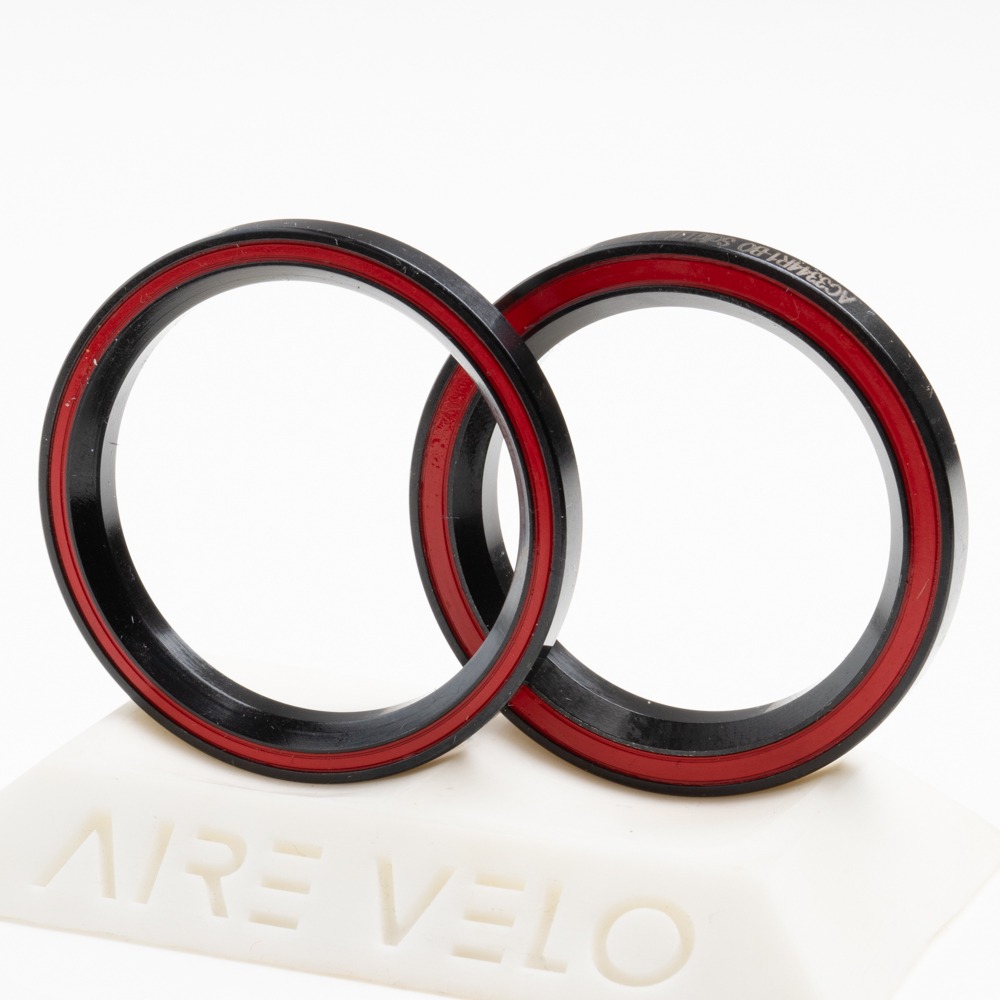

Steel, Black Oxide, Hybrid Ceramic, Stainless Steel, SLT, Enduro Stainless Steel
