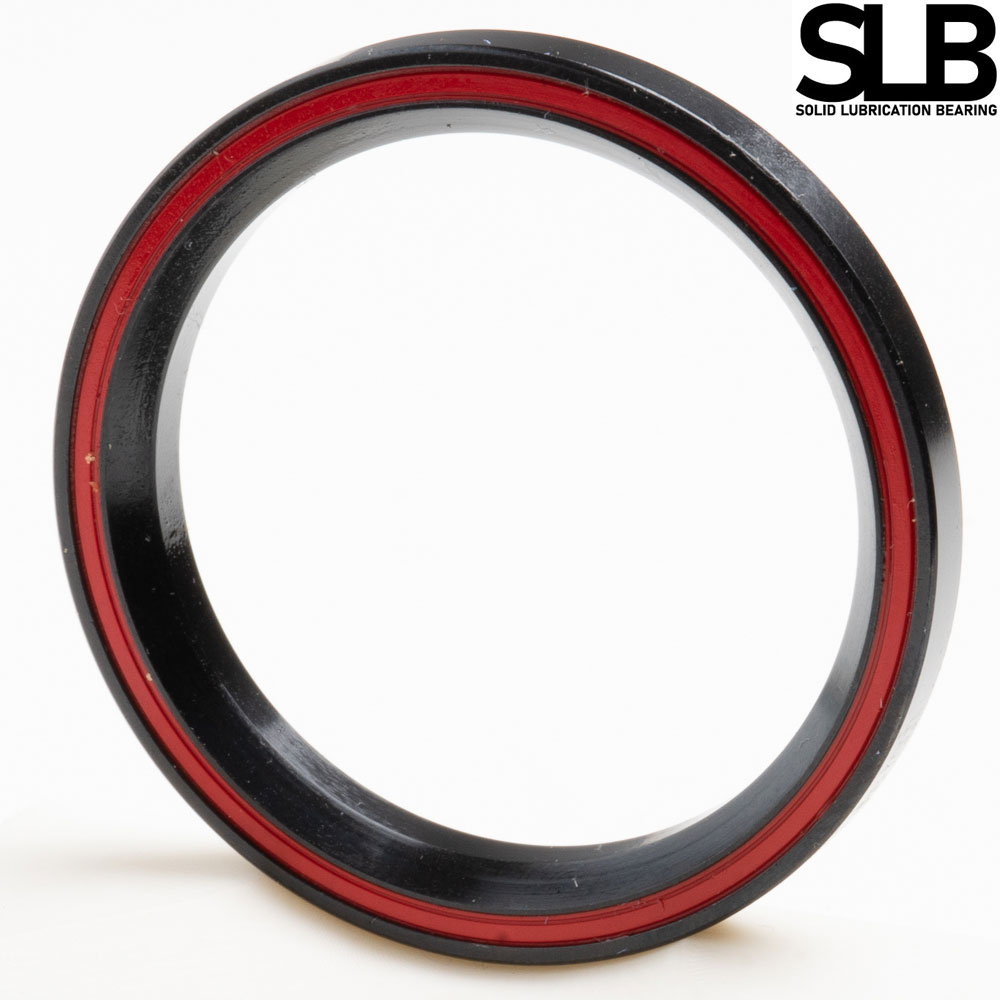

AC3544 (ACB3544H5.5) Canyon CF SLX Upper Bearing

£9.76£41.99 inc VAT

CF SLX UPPER BEARING

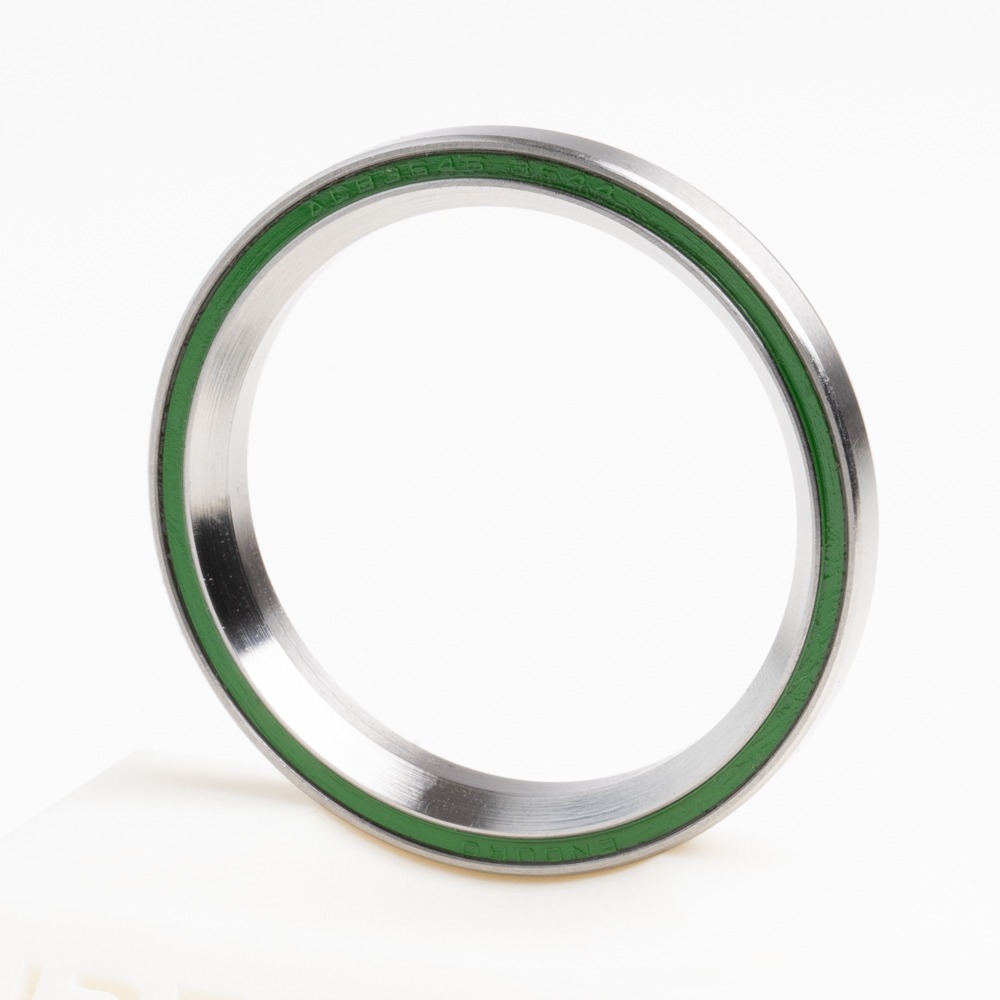

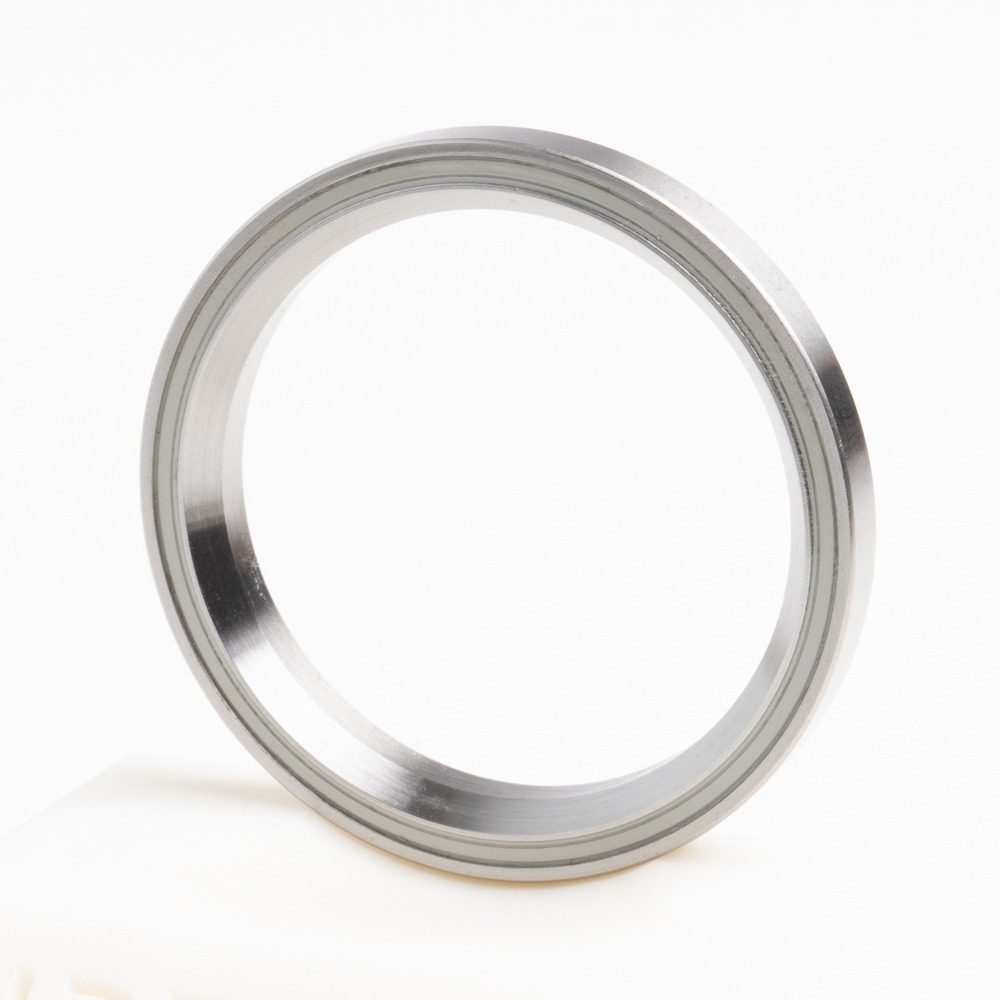

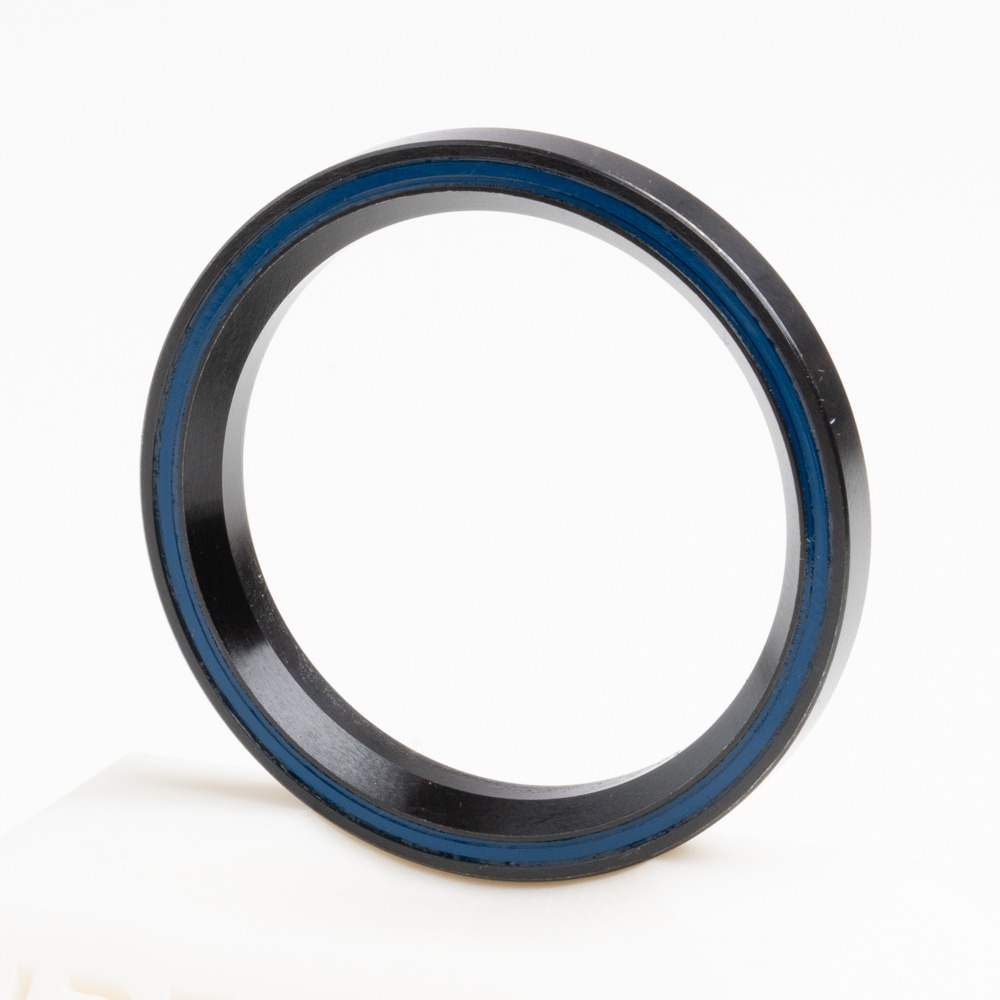

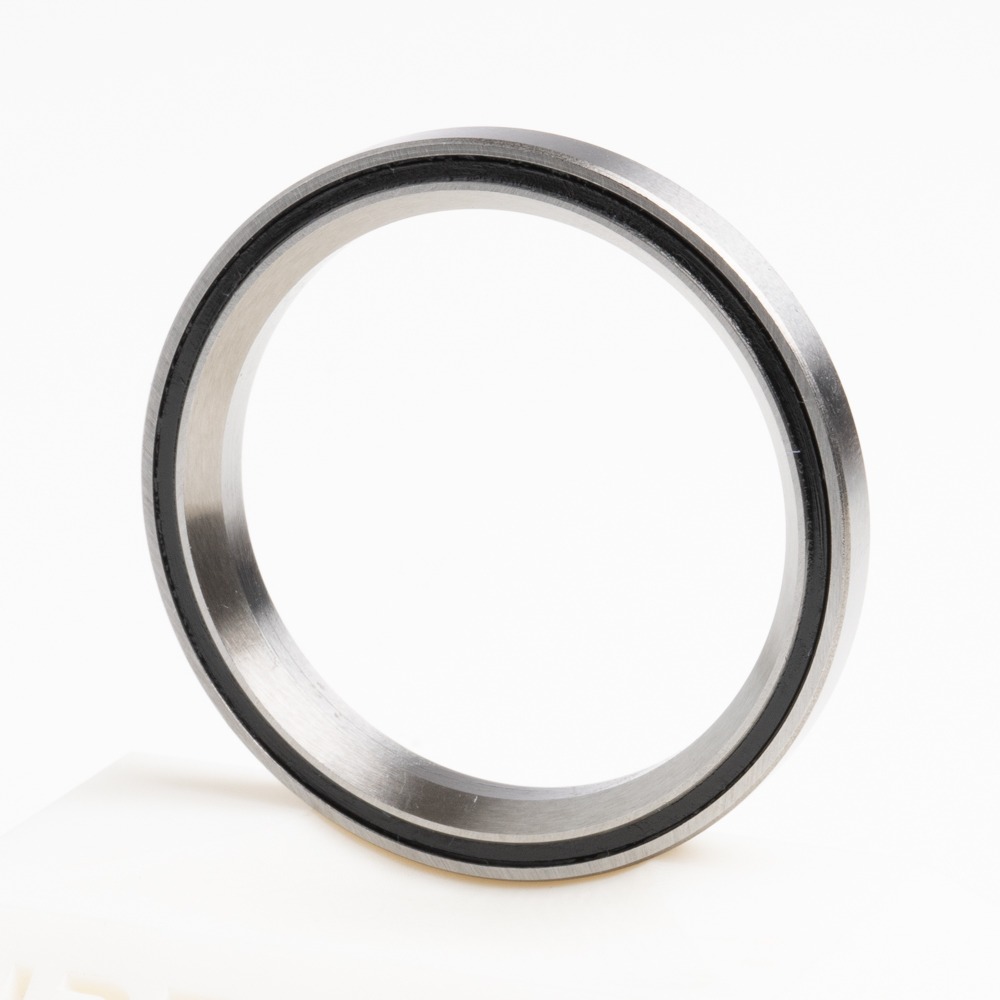

Available in steel, stainless steel or hybrid ceramic

WARNING: On the Canyon website they list this as 44×31.6×5.5 ACROS 1-1/4 bearing, which is the dimensions including the compression ring which is the wrong way to measure the bearing.

USED ON CANYON – R36 Endurace CF SLX, R39 Ultimate CF SLX, R28 Aeroad CF SLX AFTER 2016

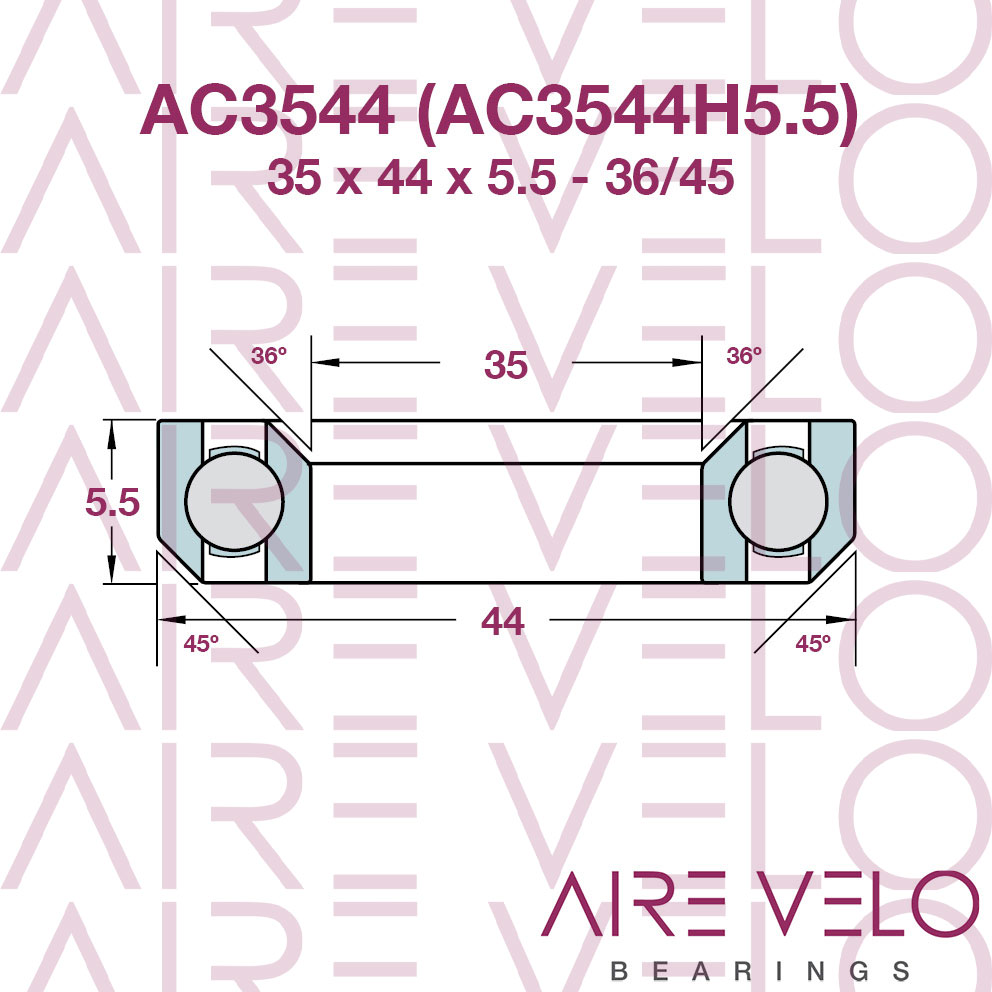

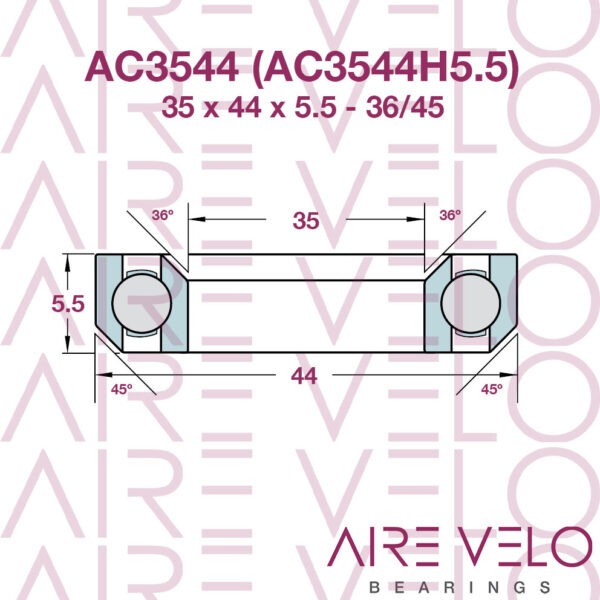

Dimensions – 35 x 44 x 5.5

Chamfer – 36/45



CF SLX UPPER BEARING

Available in steel, stainless steel or hybrid ceramic

WARNING: On the Canyon website they list this as 44×31.6×5.5 ACROS 1-1/4 bearing, which is the dimensions including the compression ring which is the wrong way to measure the bearing.

USED ON CANYON – R36 Endurace CF SLX, R39 Ultimate CF SLX, R28 Aeroad CF SLX AFTER 2016

Dimensions – 35 x 44 x 5.5

Chamfer – 36/45





Weight0.016 kg
Dimensions44 × 44 × 5.5 mm
Dimensions

35 x 44 x 5.5 36/45

ID

35

OD

44

Depth

5.5

Chamfer Angles

36/45

Internal Chamfer Angle

36

External Chamfer Angle

45

Material

Steel, Stainless Steel, Hybrid Ceramic
