£8.00

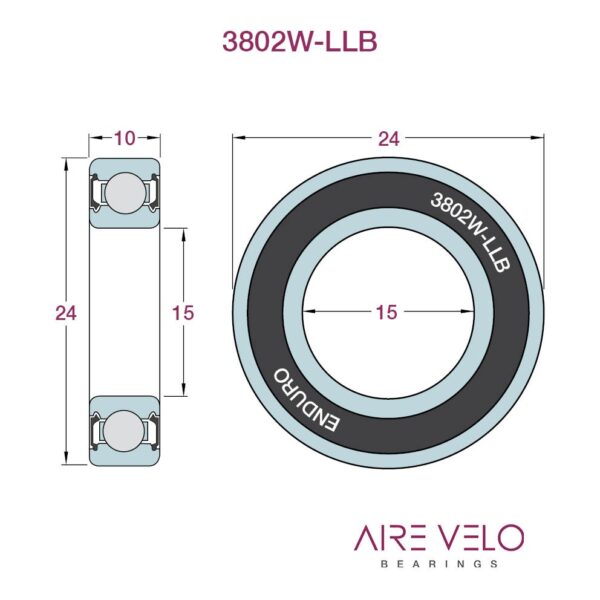

Dimensions – 15 x 24 x 10
Alternate References – 3802H10-LLB-MAX

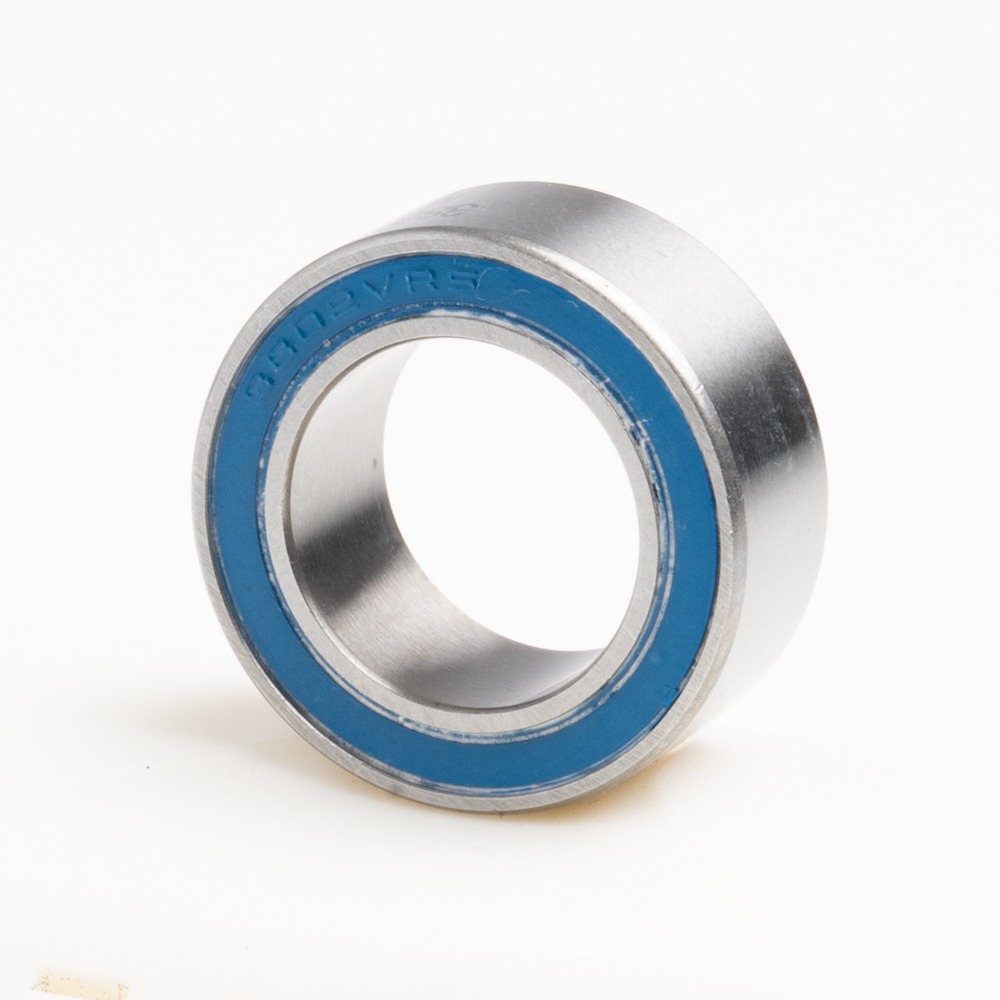

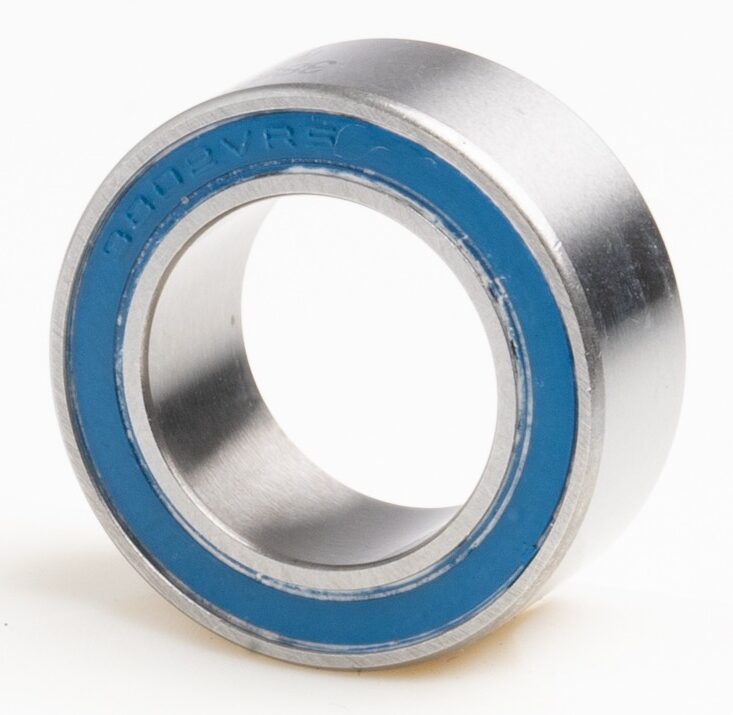

Designed specifically for suspension pivots, MAX complement type bearings address the challenges associated with mountain bike pivots. These bearings have 35-40% more load capacity than standard radial bearings. This is accomplished with a design where the maximum number of balls are inserted into the bearing with no cage separating them allowing the bearing to take a greater load at any point the bearing pivots to.
60 in stock
Dimensions – 15 x 24 x 10
Alternate References – 3802H10-LLB-MAX
Designed specifically for suspension pivots, MAX complement type bearings address the challenges associated with mountain bike pivots. These bearings have 35-40% more load capacity than standard radial bearings. This is accomplished with a design where the maximum number of balls are inserted into the bearing with no cage separating them allowing the bearing to take a greater load at any point the bearing pivots to.
| Weight | 0.01 kg |
|---|---|
| Dimensions | 24 × 24 × 7 mm |
| Dimensions | 15 x 24 x 7 |
| ID | 15 |
| OD | 24 |
| Depth | 7 |
| Seals | 2RS (x2 Rubber Seals) |
| Grease | CRC Sta-Plex Marine Grease |
| Used On | Suspension Swing Arms |
Only logged in customers who have purchased this product may leave a review.
Add to basket
Add to basket| Dimensions | 9.5 x 22.2 x 6.24/7.91 |
|---|---|
| ID | 9.5 |
| OD | 22.2 |
| Depth | 6.24 |
Add to basket
Add to basket
Select options| Dimensions | 12 x 21 x 5 |
|---|---|
| ID | 12 |
| OD | 21 |
| Depth | 5 |
Add to basket
Add to basket
Select options| Dimensions | 17 x 26 x 5 |
|---|---|
| ID | 17 |
| OD | 26 |
| Depth | 5 |
Add to basket
£8.00
60 in stock
