Campagnolo & Fulcrum Freehub 26mm Internal Circlip/Snap Ring M1308

£3.50 inc VAT

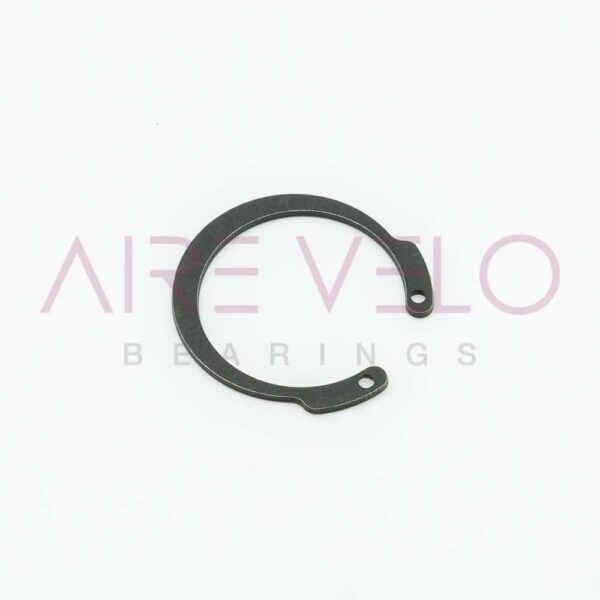

CAMPAGNOLO & FULCRUM FREEHUB INTERNAL CIRCLIP/SNAP RING

This is not a standard internal circlip, this has smaller profile with low profile eyelets as to not impeach on the bearing or the aluminium spacer between the bearings.

26MM Internal M1308 Circlip to suit a 6803 (17x26x5)

The Circlip is to suit 26mm internal bore and retain a bearing with an outer diameter of 26mm, it sits in a 27.2mm deep groove and is 1.2mm thick

79 in stock

SKU: AV-M1308-26MM-CIRCLIP Categories: , ,

CAMPAGNOLO & FULCRUM FREEHUB INTERNAL CIRCLIP/SNAP RING

This is not a standard internal circlip, this has smaller profile with low profile eyelets as to not impeach on the bearing or the aluminium spacer between the bearings.

26MM Internal M1308 Circlip to suit a 6803 (17x26x5)

The Circlip is to suit 26mm internal bore and retain a bearing with an outer diameter of 26mm, it sits in a 27.2mm deep groove and is 1.2mm thick

Weight0.002 kg
Dimensions27.9 × 27.9 × 1.2 mm
Dimensions

26mm Bore (27.2mm Groove)

ID

21.9

OD

27.9

Depth

1.2

Material

Carbon Spring Steel
