3803-2RS-MAX (3803-VRS, 3803H10, W5256338, W302025) 17 x 26 x 10

£8.50

Total Sold: 836

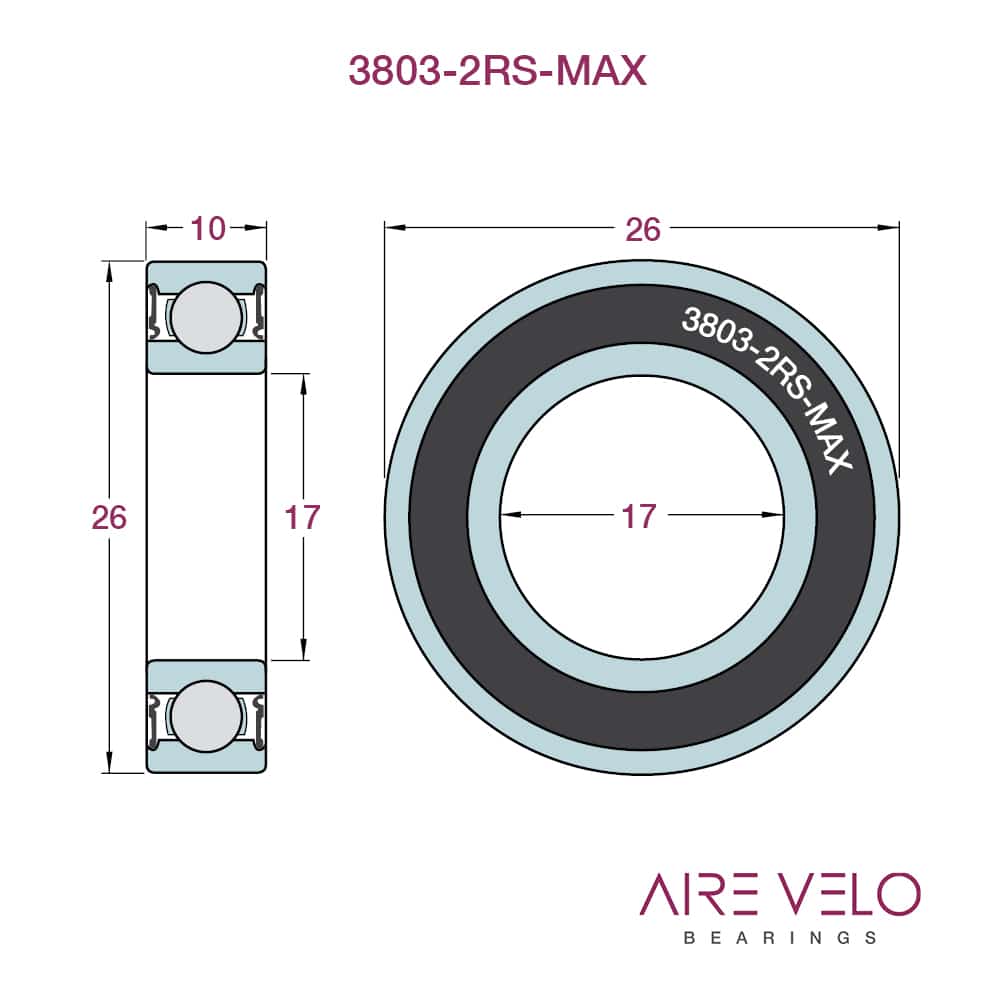

Dimensions – 17 x 26 x 10

Alternate References – 3803-LLU-MAX

Designed specifically for suspension pivots, MAX complement type bearings address the challenges associated with mountain bike pivots. These bearings have 35-40% more load capacity than standard radial bearings. This is accomplished with a design where the maximum number of balls are inserted into the bearing with no cage separating them allowing the bearing to take a greater load at any point the bearing pivots to.

88 in stock

SKU: AV-3803-2RS-MAX Categories: , ,

Dimensions – 17 x 26 x 10

Alternate References – 3803-LLU-MAX

Designed specifically for suspension pivots, MAX complement type bearings address the challenges associated with mountain bike pivots. These bearings have 35-40% more load capacity than standard radial bearings. This is accomplished with a design where the maximum number of balls are inserted into the bearing with no cage separating them allowing the bearing to take a greater load at any point the bearing pivots to.

Weight0.015 kg
Dimensions26 × 26 × 10 mm
Dimensions

17 x 26 x 10

ID

17

OD

26

Depth

10

Seals

2RS (x2 Rubber Seals)

Grease

CRC Sta-Plex Marine Grease

Used On

Suspension Swing Arms
