KP5AX-13-MAX 7.94 x 20.64 x 5.92/9.54

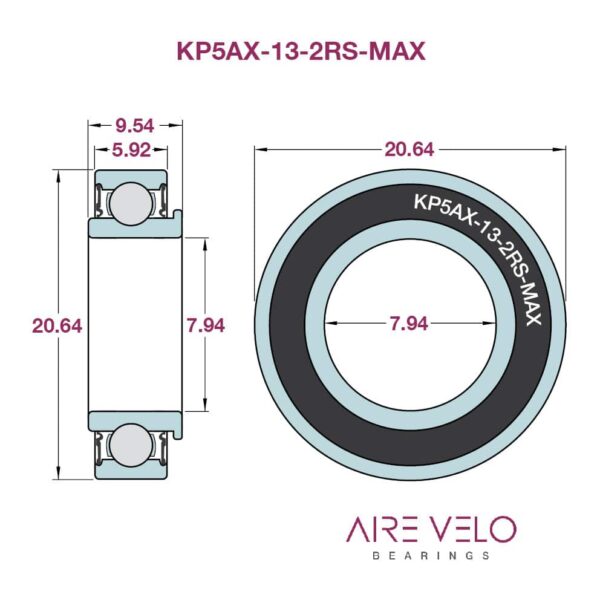

Dimensions – 7.94 x 20.64 x 5.92/9.54

Alternate References – N/A

Most Marin/Whytes use KP5AX(or KP5A), but some older Marins use this KP5AX-13 which has an extra 2mm depth.

Designed specifically for suspension pivots, MAX complement type bearings address the challenges associated with mountain bike pivots. These bearings have 35-40% more load capacity than standard radial bearings. This is accomplished with a design where the maximum number of balls are inserted into the bearing with no cage separating them allowing the bearing to take a greater load at any point the bearing pivots to.
